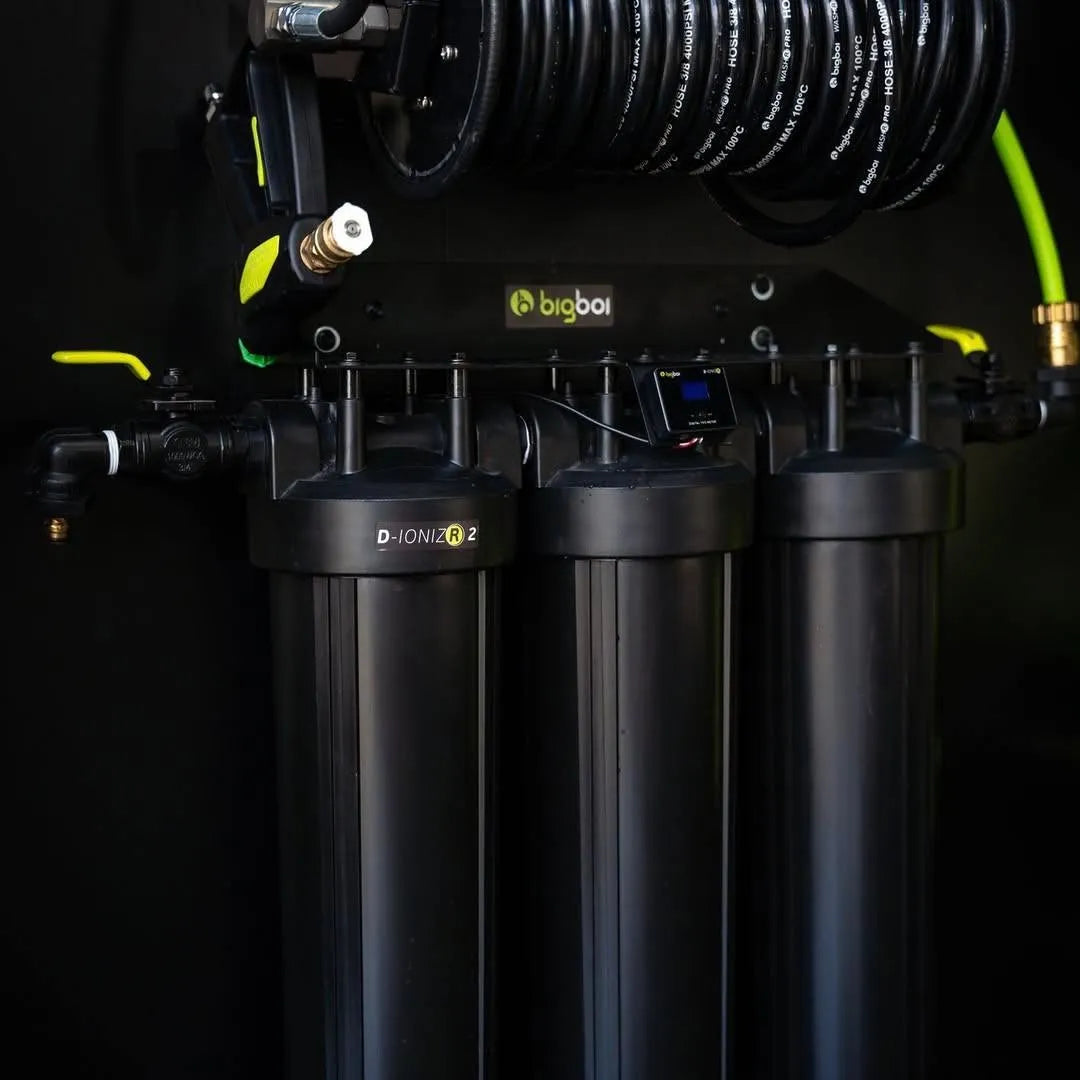

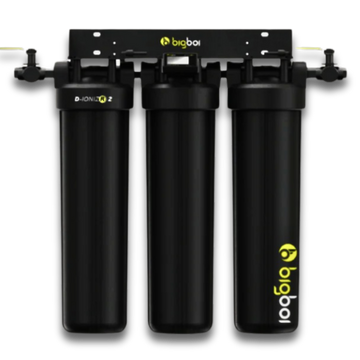

BigBoi D-IONIZR2 3-stage Water Filtration System

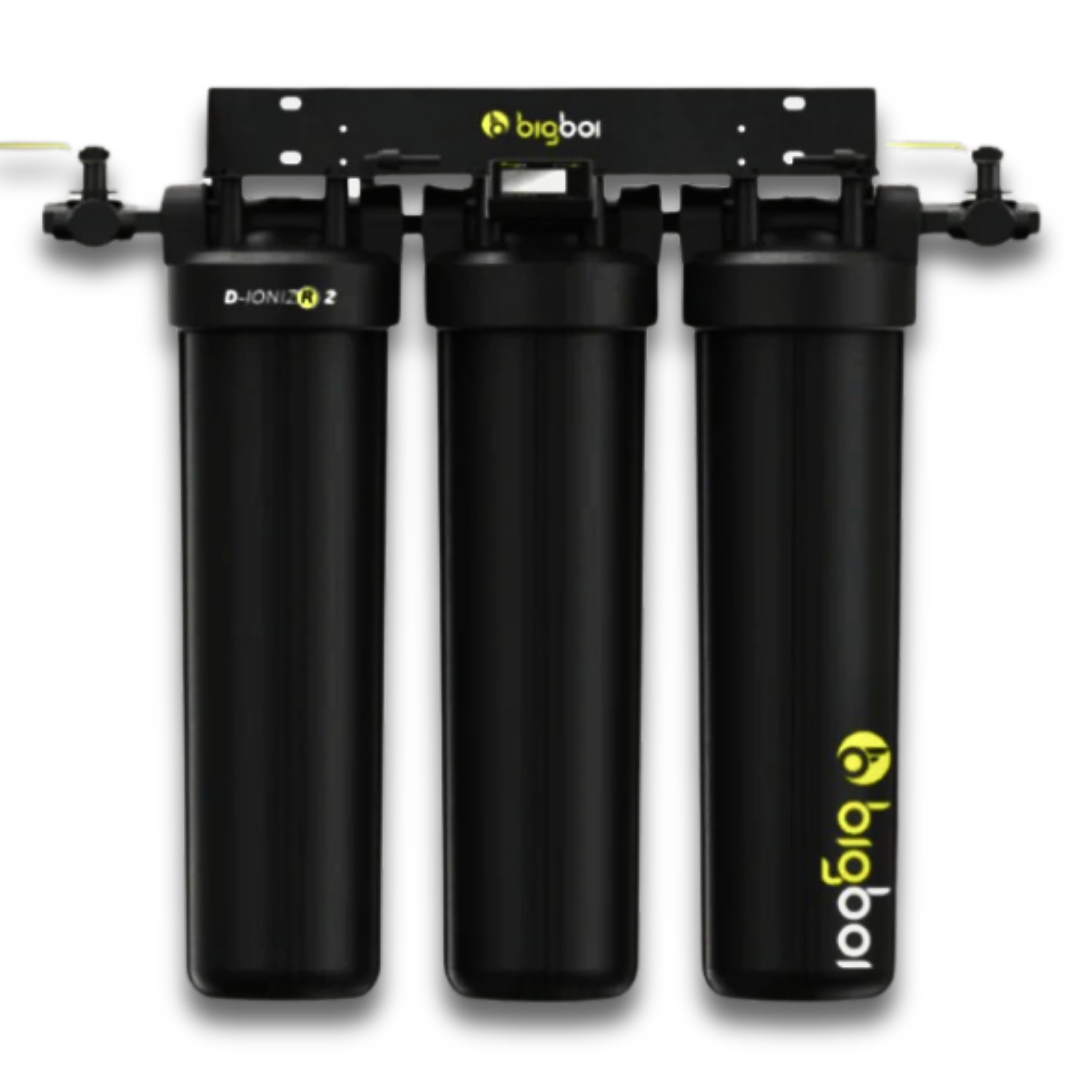

BigBoi D-IONIZR2 3-Stage Water Filtration System

Say goodbye to water spots for good. The BigBoi D-IONIZR2 is engineered with a 3-stage filtration setup to deliver perfectly pure, 0 PPM water for a streak-free finish every wash. With advanced carbon pre-filtration, dual resin cartridges, a built-in TDS meter, and bypass valve control, this system gives enthusiasts and professionals complete flexibility and superior detailing results.

How the 3-Stage Filter Works

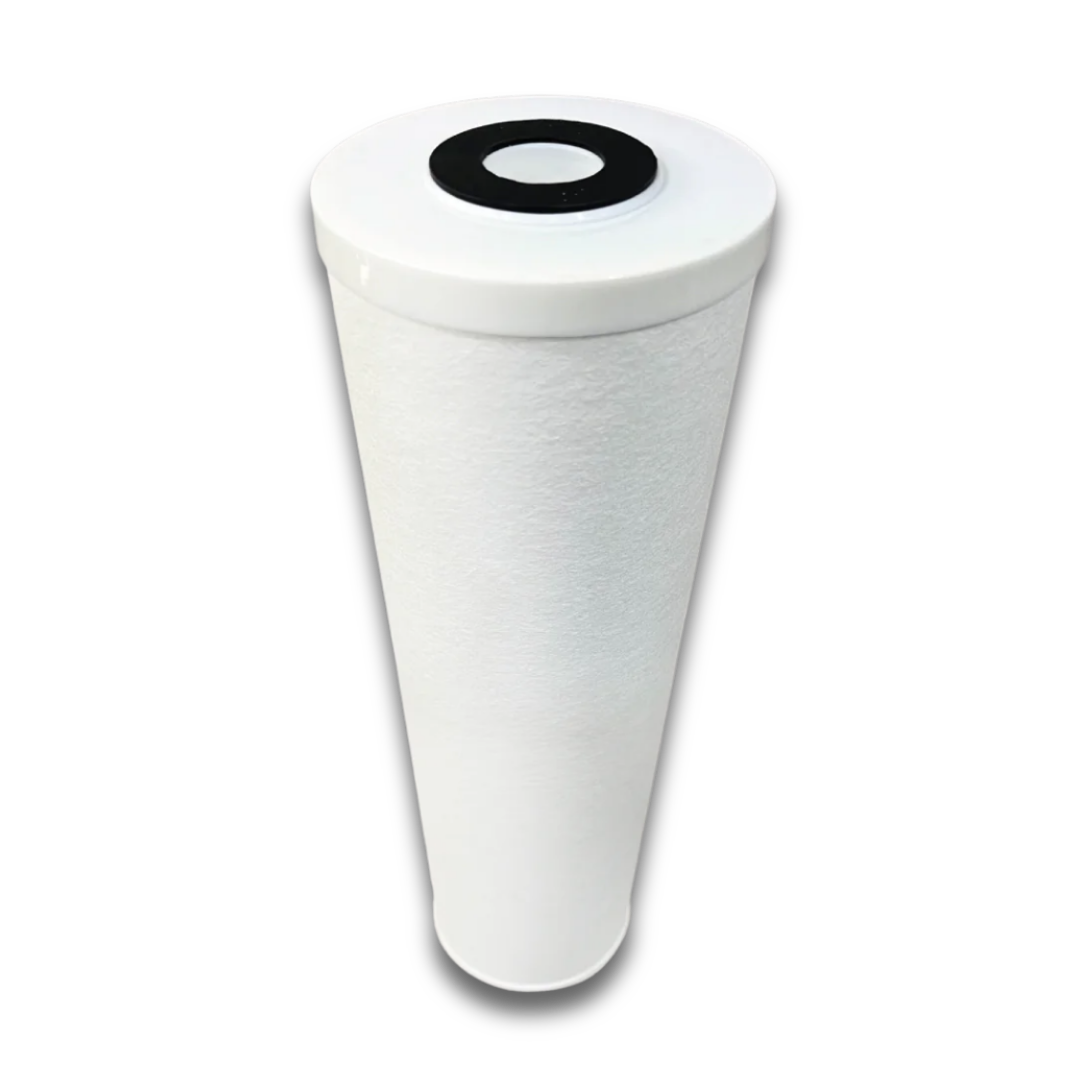

Stage 1 – Composite Carbon Filter:

 Removes impurities and reduces water hardness, helping protect the resin and extend cartridge life by up to 20%.

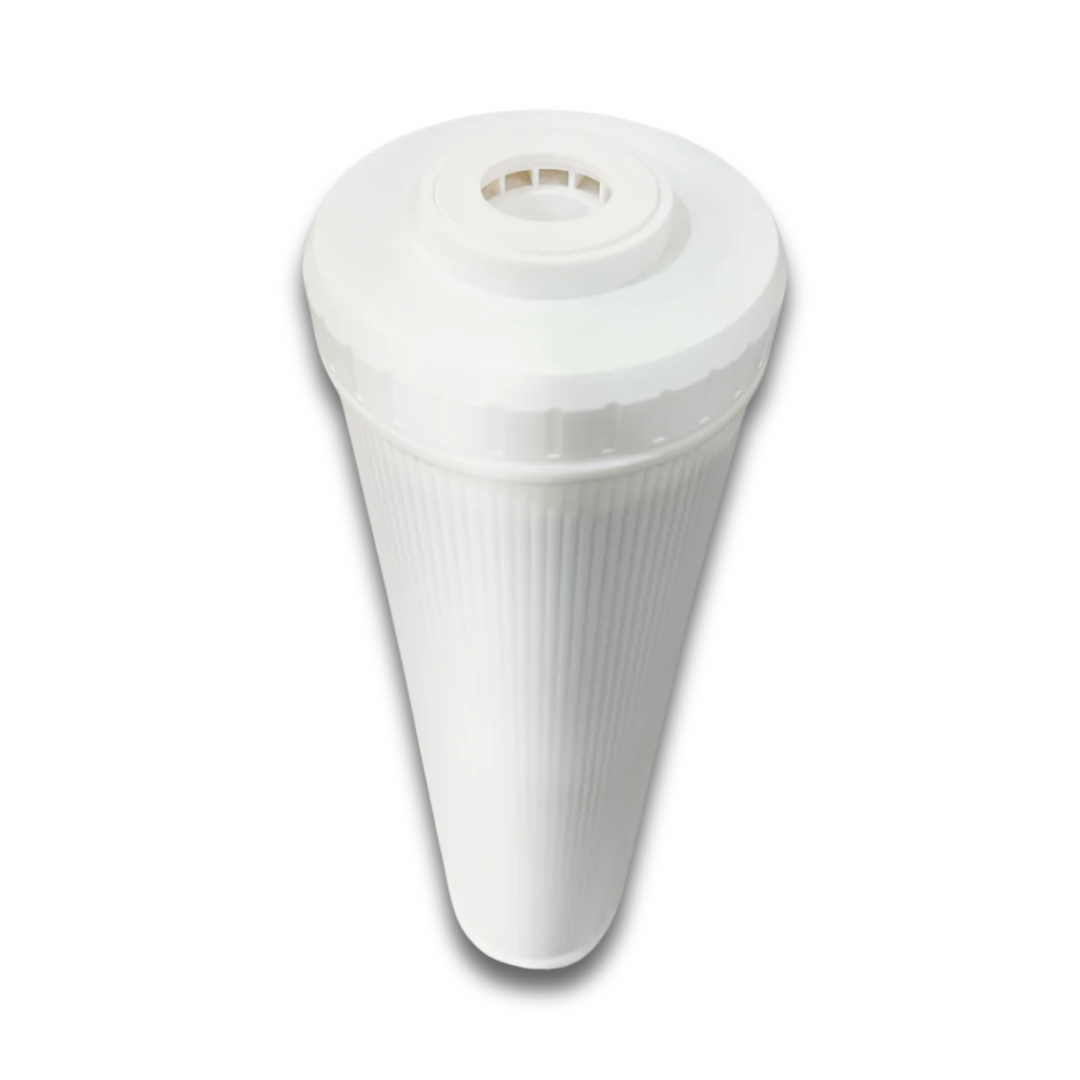

Stages 2 & 3 – Dual Deionised Resin Filters:

Work together to eliminate all remaining minerals, reducing water purity to 0 PPM (parts per million) for a truly spot-free rinse.

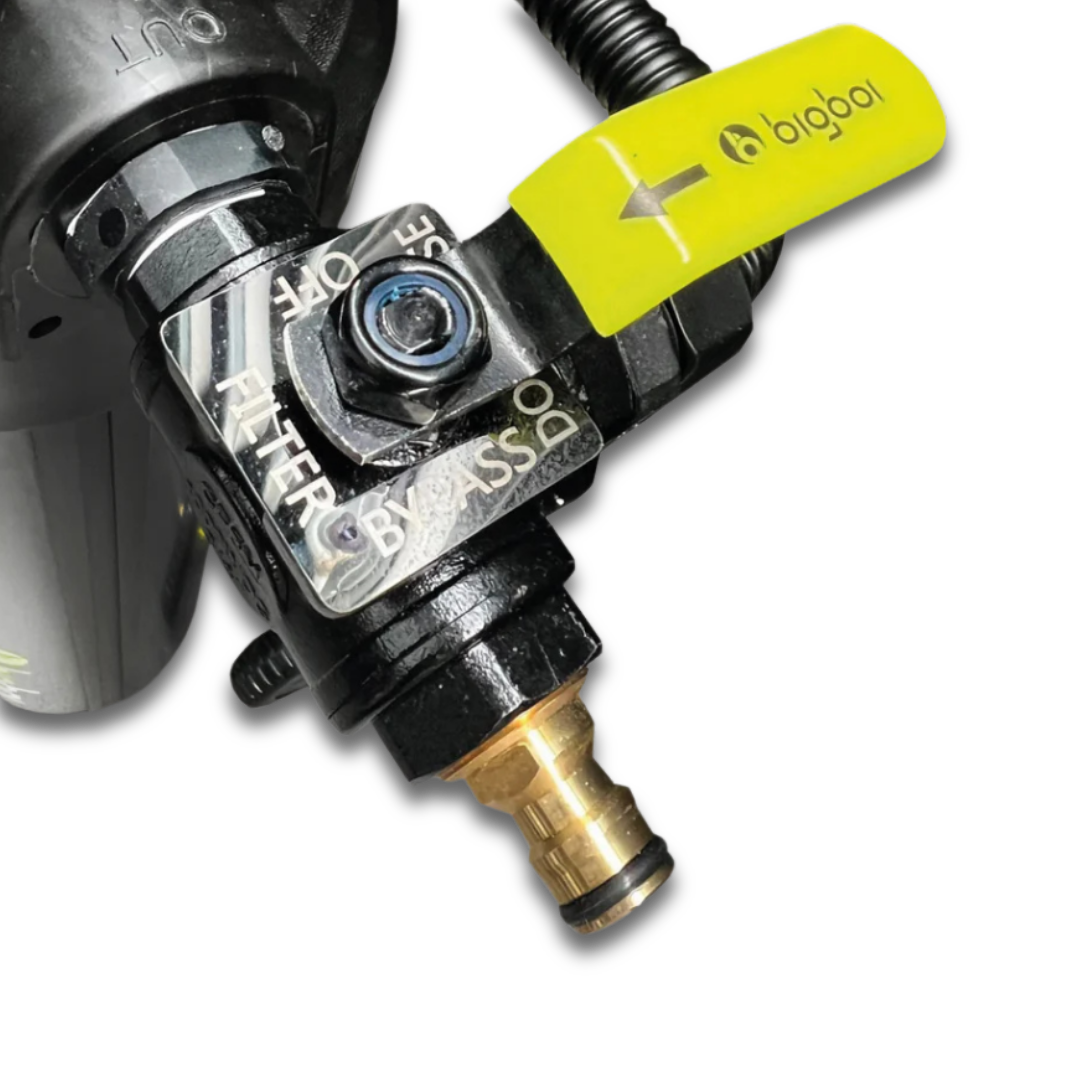

Bypass Valve: Lets you choose between filtered and unfiltered water. Use purified water only during the rinse cycle to prolong cartridge life, or run it through the full wash for maximum foaming and cleaning performance.

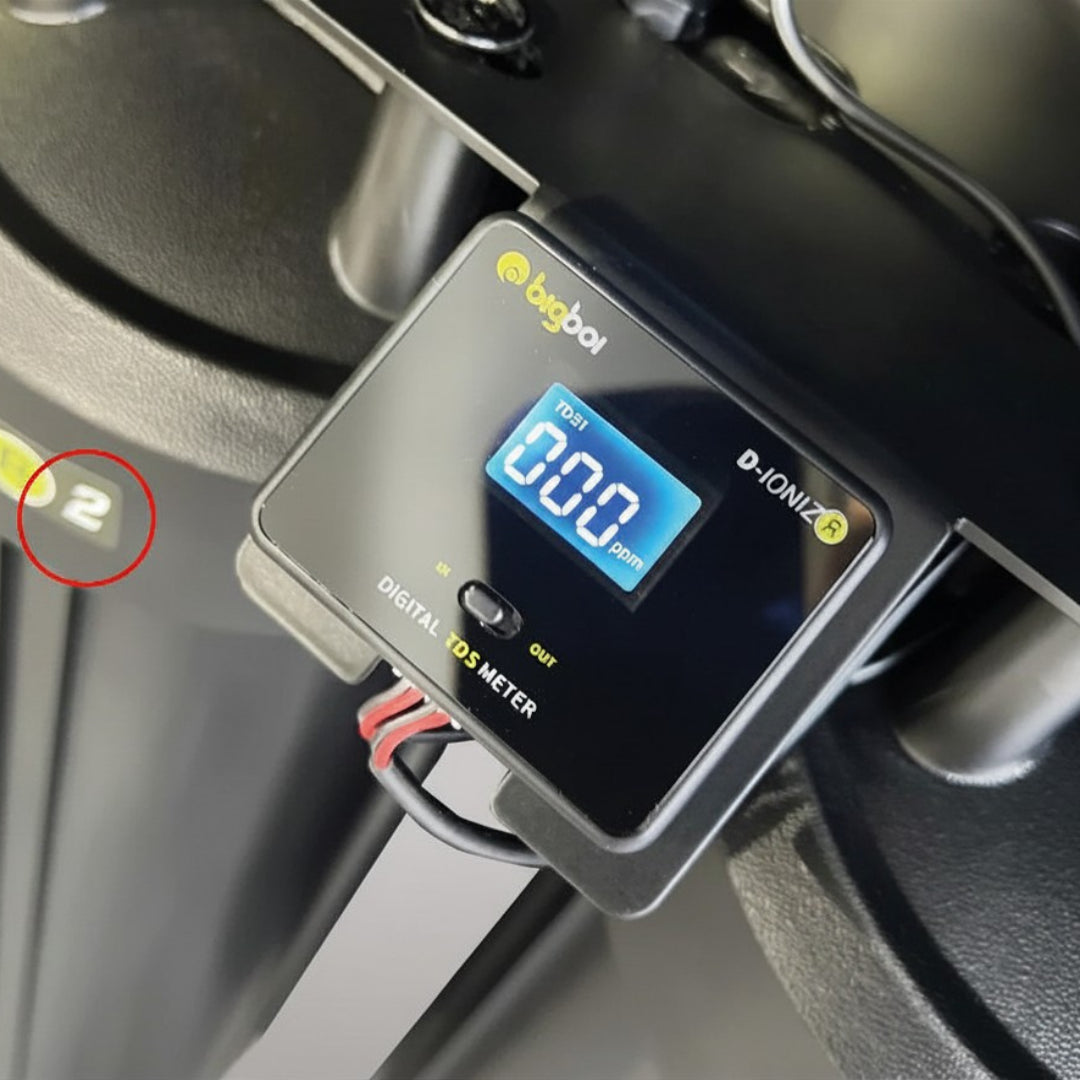

TDS Meter: Built-in digital reader provides real-time monitoring of incoming and outgoing water purity.

3 Step Filtration Performance & Efficiency

• One resin cartridge filters up to 1200 litres of water (based on <100 TDS).
• When paired with the carbon pre-filter, cartridge efficiency increases by 20%, giving up to 1440 litres of ultra-pure water.
• Dual resin setup means 160–192 rinse cycles when used for rinsing only (results vary depending on water hardness).
• Cleaner water ensures improved wash quality, superior foam, and zero spotting.

D-IONIZR2 Benefits & Features

• 3-Stage Filtration: Composite carbon + dual resin for ultimate water purity.
• Spot-Free Rinse: Eliminates streaks and water spots for flawless results.
• Extended Cartridge Life: Carbon stage improves resin efficiency and lifespan.
• TDS Meter Monitoring: Clear in/out readings keep you in control of water quality.
• Bypass Valve: Flexible control over filtration usage, extending cartridge longevity.
• High Capacity: Handles 1200–1440 litres of filtered water per cartridge set.

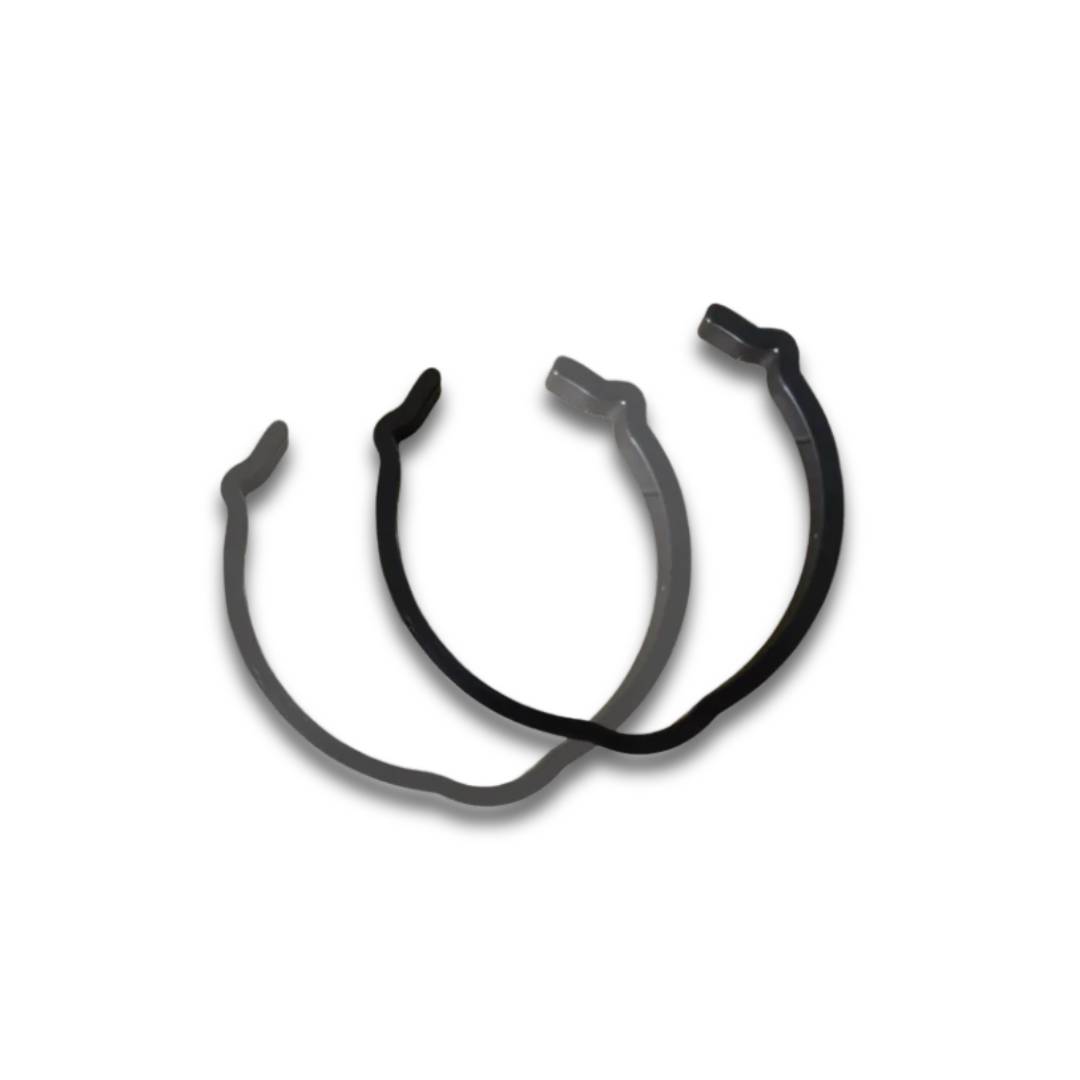

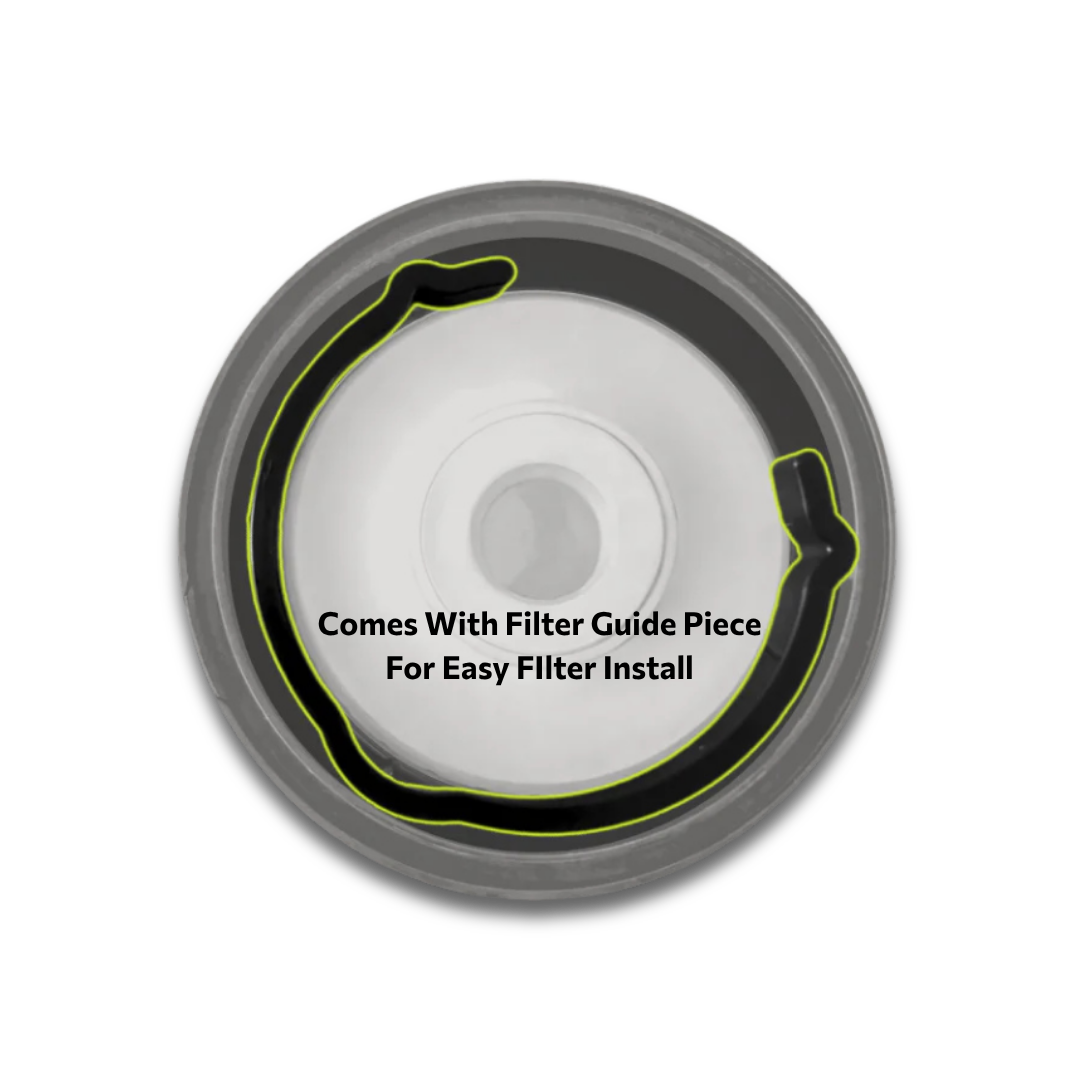

• MKII Reliability: Internal filter guides prevent misalignment, ensuring accuracy and durability.
• Pressure Tested: Every unit is leak-tested before shipping for guaranteed reliability.
• Complete Kit: Includes all fittings, tools, and extras needed for setup and maintenance.

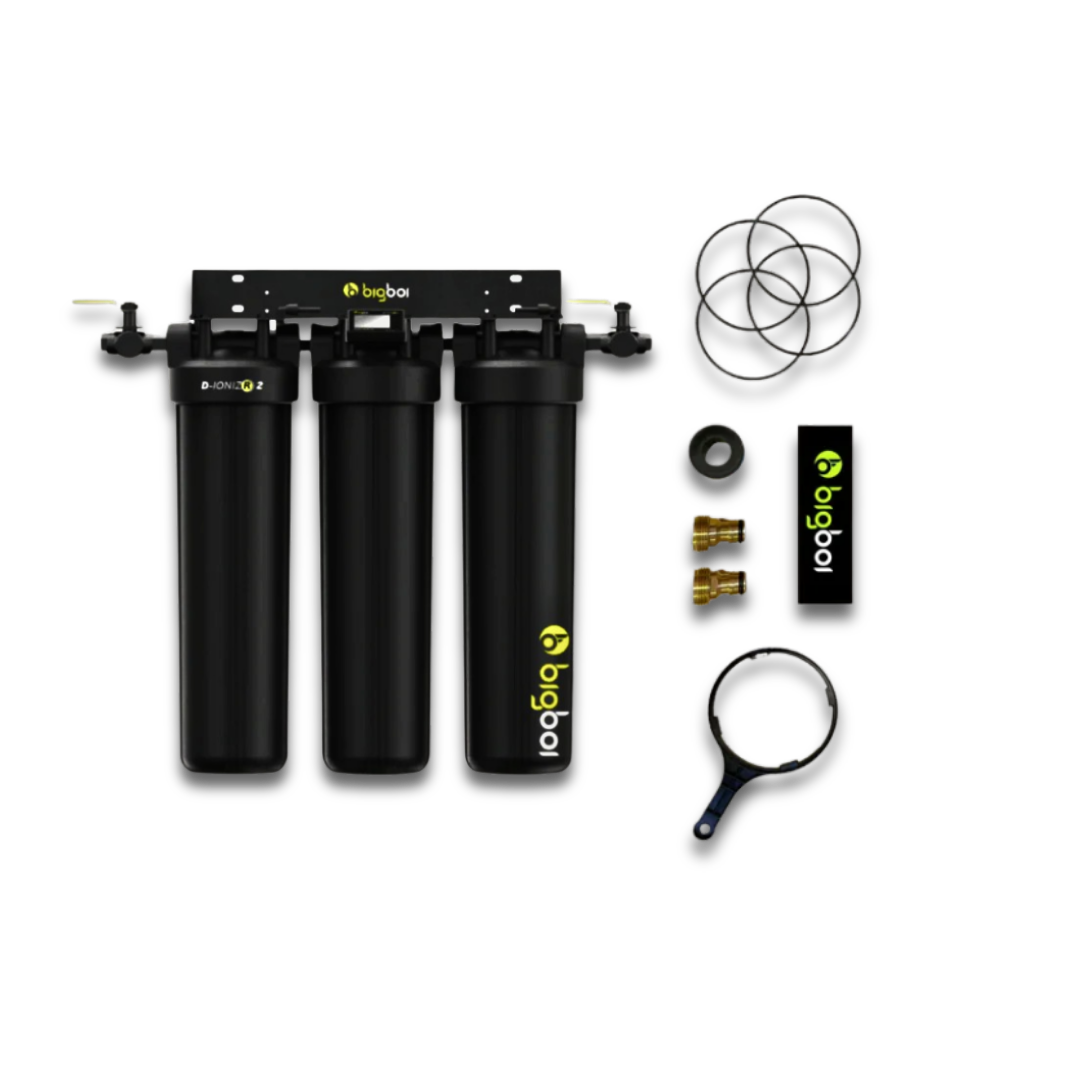

What's In the box (2 cartons)

• 1 × Top mount tank housing with bypass system
• Built-in digital TDS reader (in/out readings)
• 3 × Black filter tanks
• 1 × 20" Composite Carbon filter
• 2 × 20" Deionised Resin filters
• Tank wrench, water fittings, Teflon tape, spare O-rings, lubrication, valve oil
• BigBoi front tank sticker

D-IONIZR2 Technical Specifications

• Flow Rate: Up to 9.5 LPM
• Bypass Valve: Included for filtration control
• TDS Meter: Built-in digital reader (in/out monitoring)
• Tank Dimensions: 50 × 15 × 15 cm (each tank)

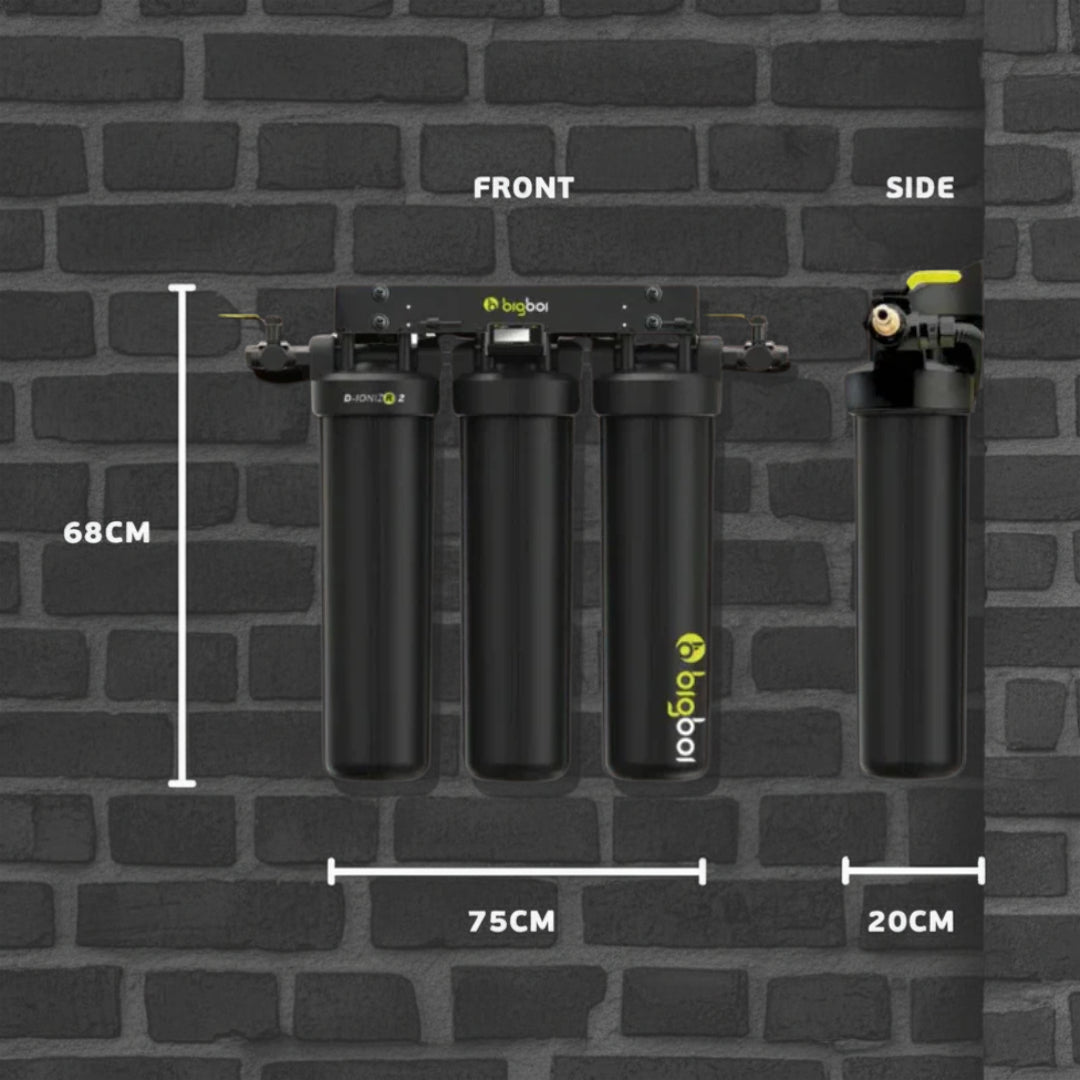

• Overall Dimensions: 68cm (H) × 75cm (W) × 20cm (D)
• Weight: 38 kg (with cartridges)
• Operating Temp: Cold water up to 40°C
