Active Pressure Washers Wall mount & Hose reel

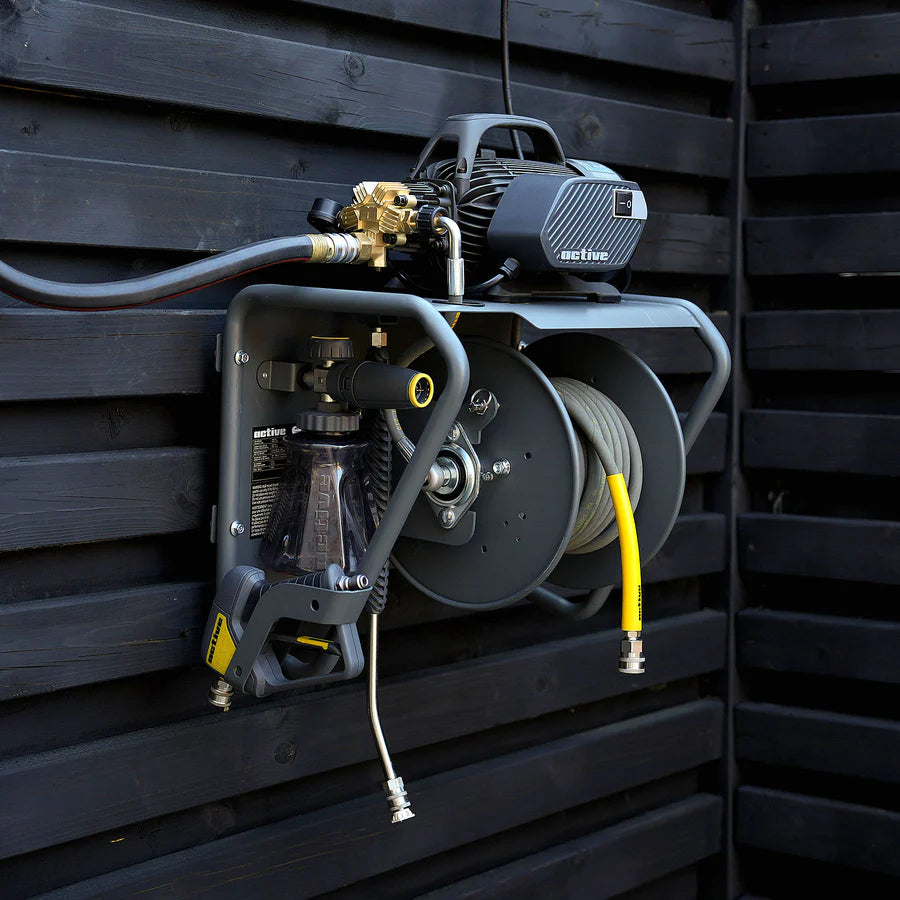

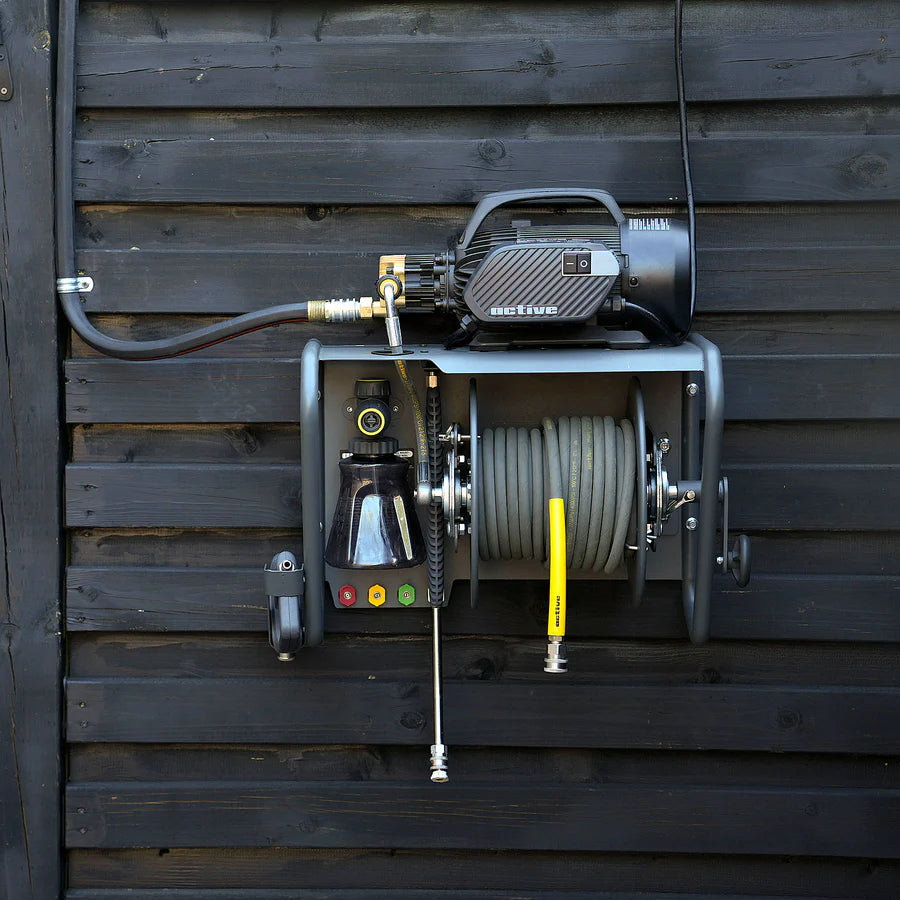

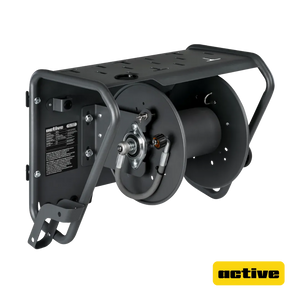

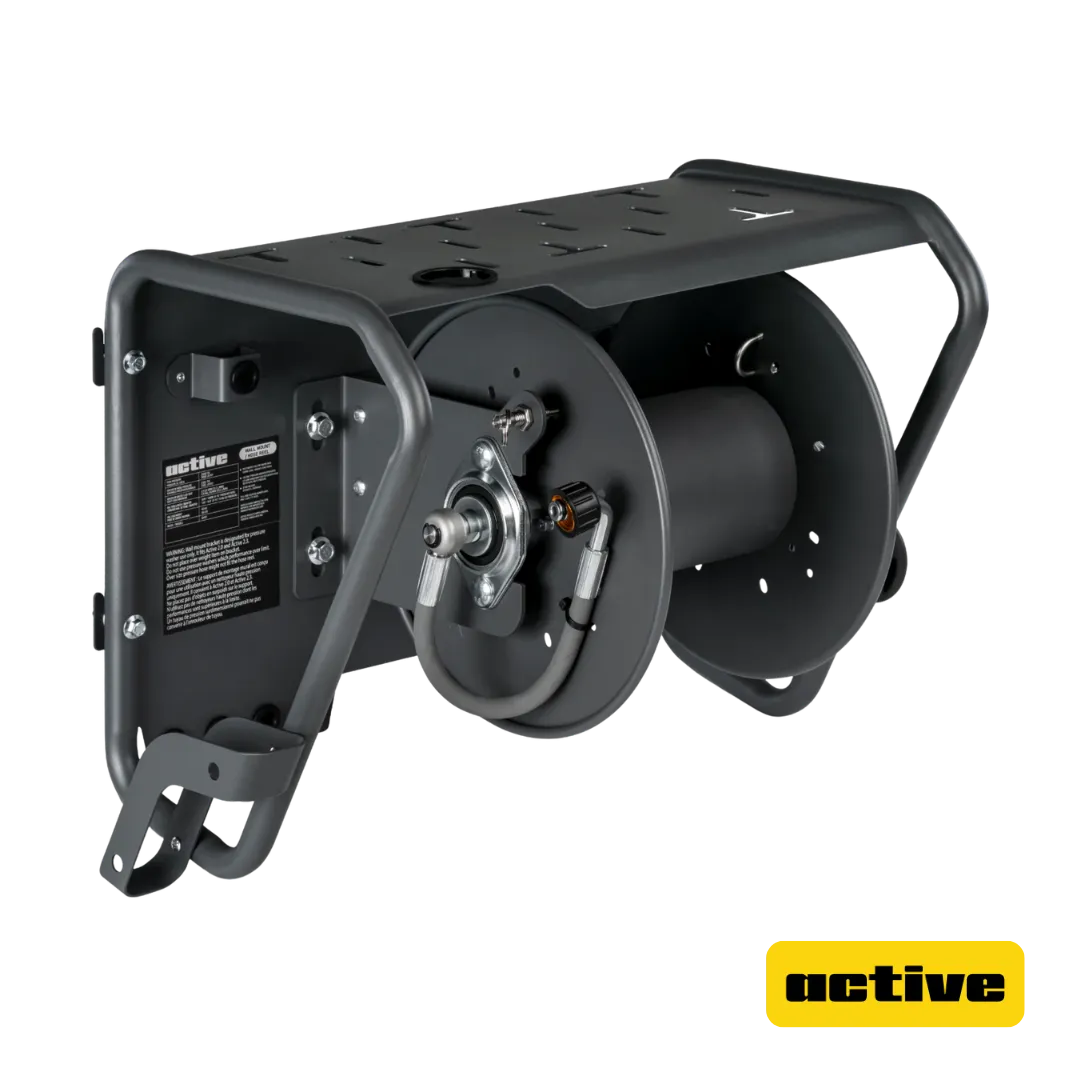

The Active hose reel wall mount solution is an all-in-one garage solution that keeps pressure washer setups organized, accessible, and clutter-free. Designed for safe, straightforward mounting and universal compatibility, it offers smart storage for hoses and accessories while being perfectly optimized for the Active lineup.

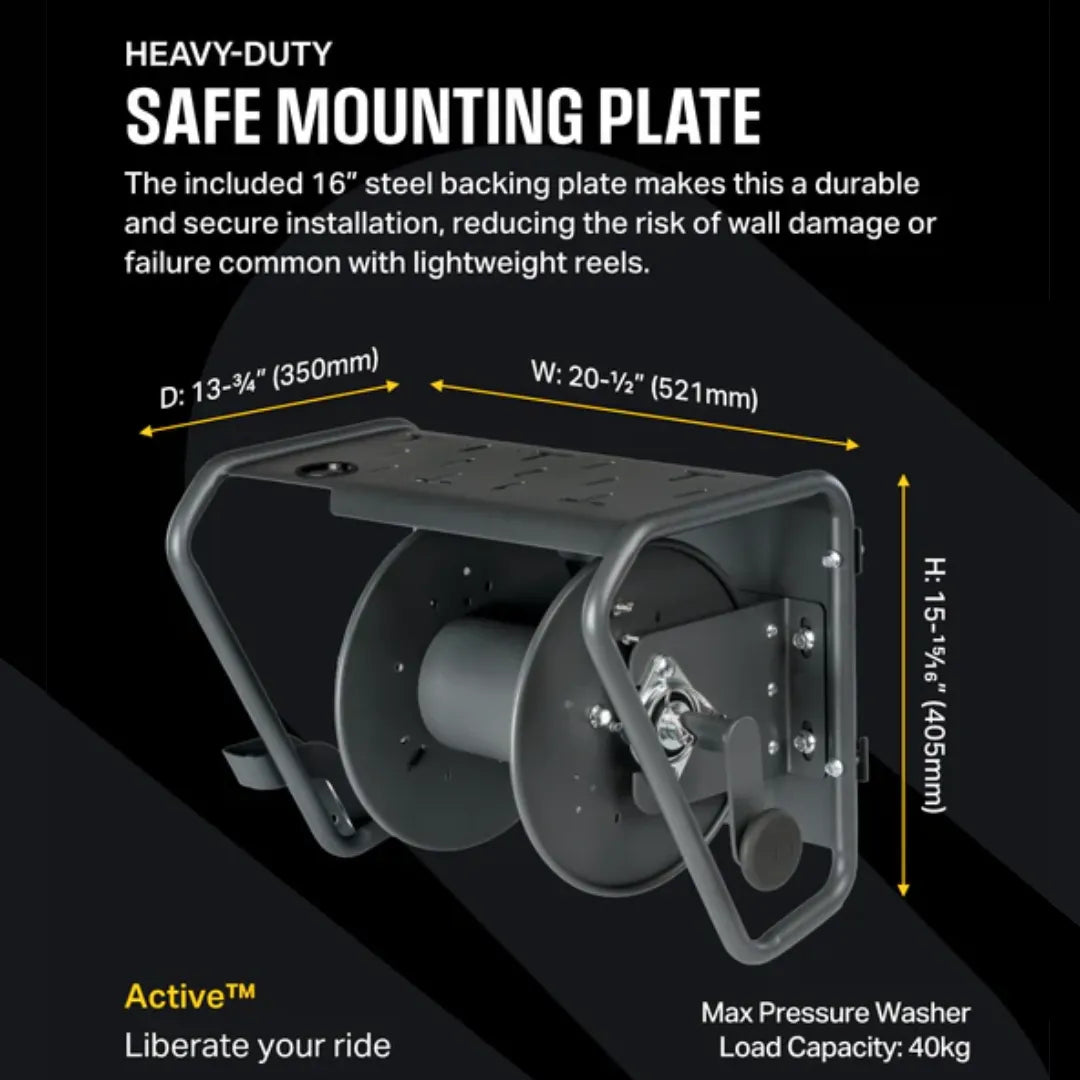

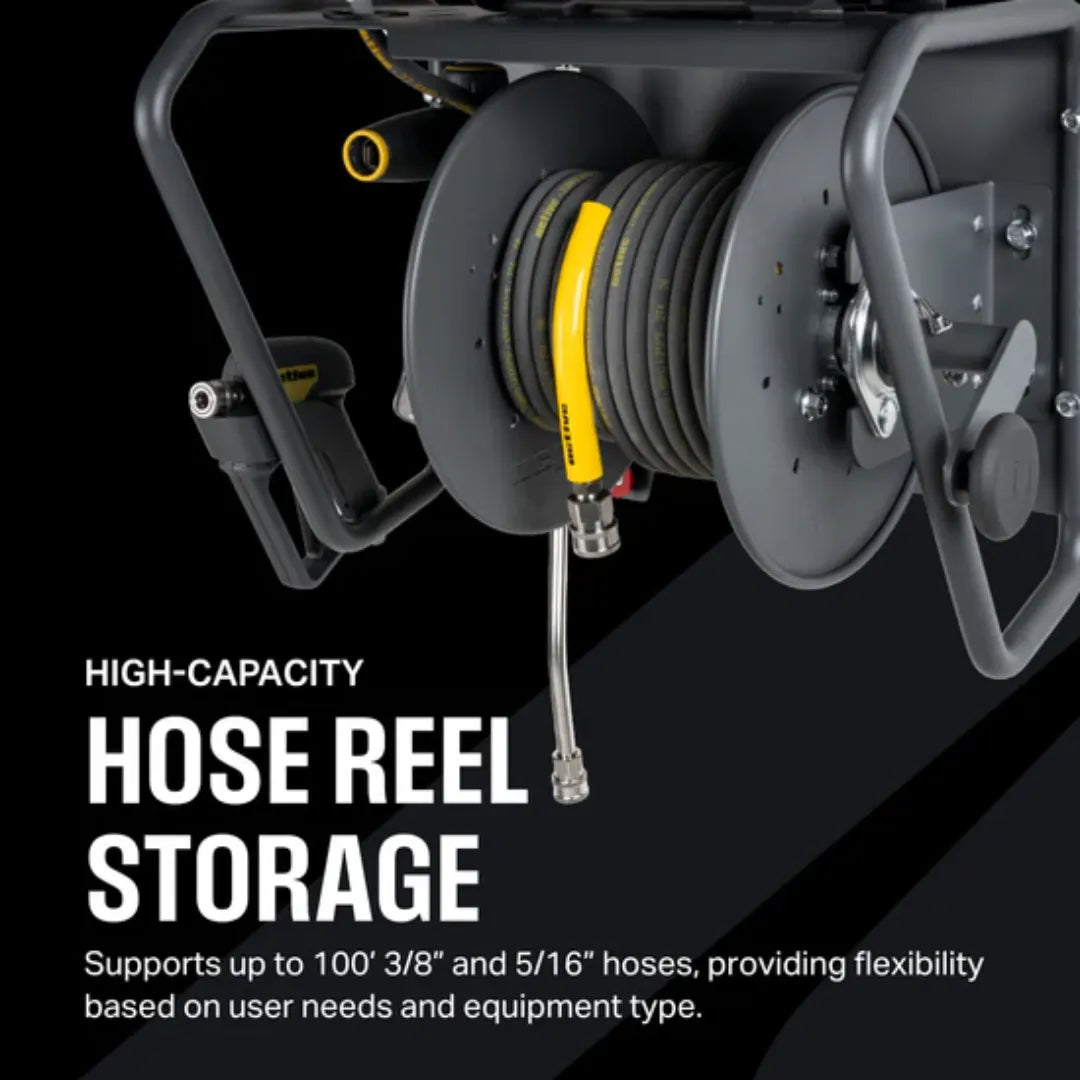

The Active Premium hose reel and wall mount combo solution was developed using consumer feedback, preferences and industry expert guidance. This lead to class beating features like a hose reel capable of storing up to 100’ 3/8 hose and 150’ 5/16 hose, wall mount cage with dedicated slots for pressure washer gun, foam cannon, lance and 4 nozzles. A 16” backing plate for safe mounting on the wall and a 5/16” diameter jumper hose with an M22-14mm connector for install with the pressure washer.

The solution aims to be an integral accessory to the car wash experience in your garage, which ties in the Active pressure washer range to the active accessory bundle and completes the set of products for an integrated wash experience.

The T-Slot mounting holes on the top plate allow this mount to be used with most common pressure washers. That said, if your pressure cleaner does not use a M22x1.5 - 14 fitting, you may need to purchase an adapter seperately.

Active Hose Reel and Wall Mount Specs

Metal frame and Hose reel specs

  • Inlet fitting: 3/8” QC female coupler
  • Outlet fitting: M22x1.5-14
  • Extension hose pre-installed
  • Reel rotation lock: release lock pin before turning the reel
  • Hand crank: hand crank install on reel and locked by pin
  • Hose clamp: secures hose on the reel (adjusted by customer)
  • Stainless steel (304) reel valve
  • Hose reel is pre-installed on frame
  • Steel frame and mount plate

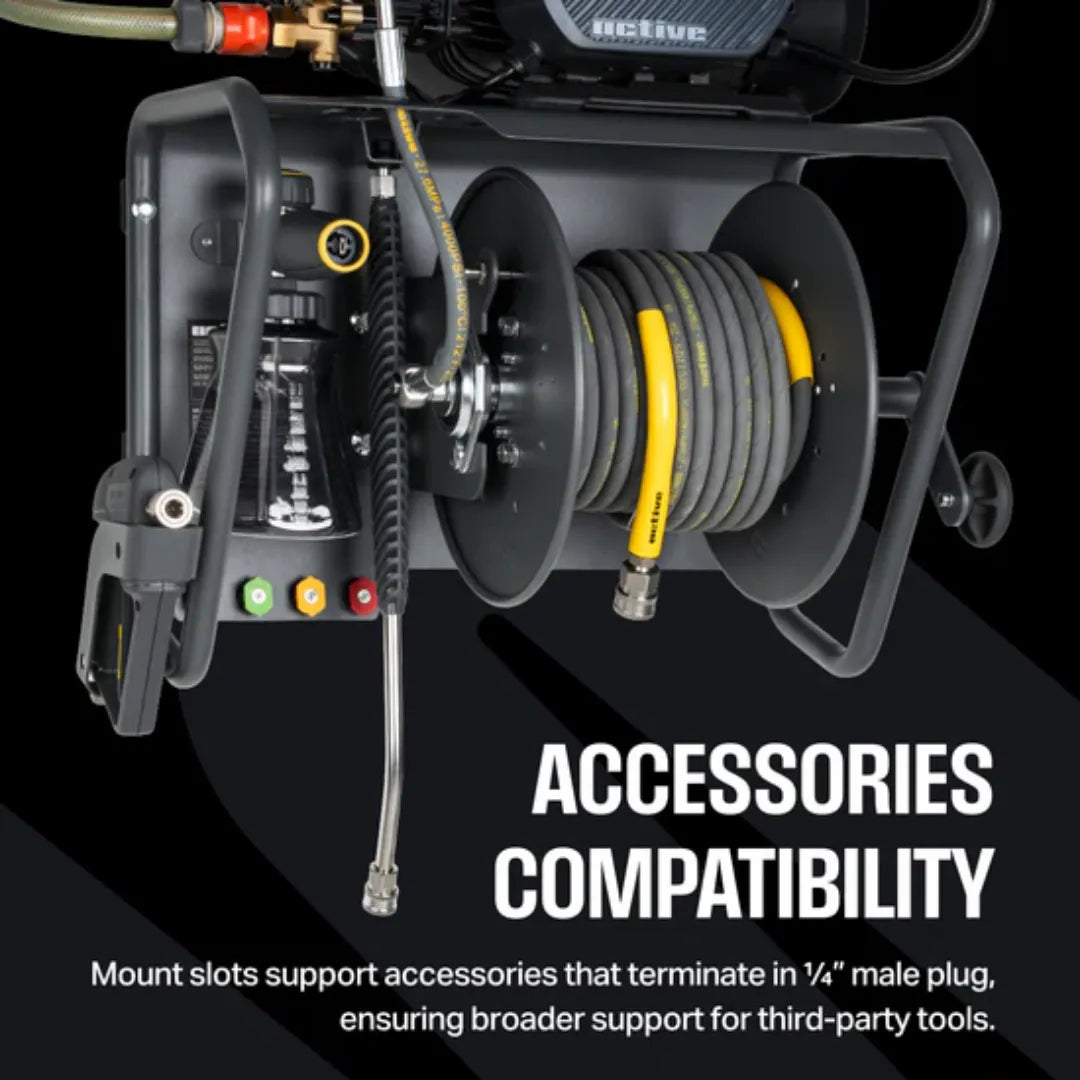

Pressure Washing Tool Holders

  • Nozzle holdrs: 4 pcs rubber grommets pre-installed
  • Foam cannon mount: 1pc rubber grommet - pre installed
  • Lance holder: 1pc rubber grommet pre-installed

Extension/Jumper Hose

  • 5/16” rubber hose, 340mm in length
  • M22x1.5-14 connector for pressure washer
  • Female fitting for jumper hose male fitting (SST304)

Hardware and Accessories

  • 4pcs 6x30 mm screws to fasten mounting plate on the wall
  • 4pcs M8x 20mm bolts to secure wall mount to mounting plate
  • 2pcs M5x14 bolt to secure gun holder on frame
  • Hand crank with lock pin
  • Mounting plate
  • Gun holder
  • Hardware kit

PLEASE NOTEPressure Washer, Lance, Foam Cannon and other accessories not included.
